What is Shear Connector?

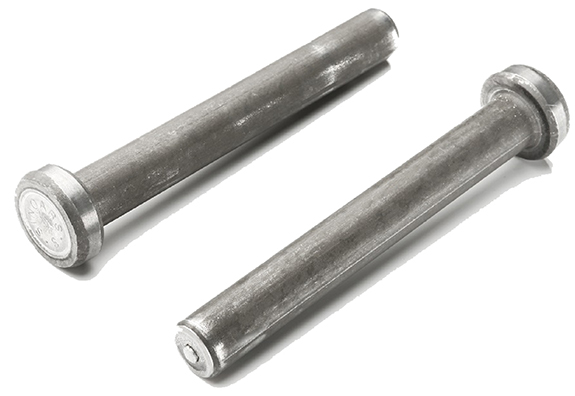

Shear Connectors are typically used in composite steel construction to tie the concrete slab to steel members and resist shear forces between the concrete slab and steel members.

It’s one of the classics apply of drawn arc stud welding technology. Widely used in steel constructions, bridges, power stations, traffic stations, oil and gas stations, etc.

Identify the Quality

√ According to standard EN ISO 13918 & AWS D1.1
√ Mild Steel & Stainless Steel are available
√ Factory Production Control certified by DNV-GL
√ Stud Base & WPQR Certified by TÜV-SÜD
√ Phosphate plating surface treatment
√ All with high precision aluminum flux
√ Welder-friendly
√ Save stud welding gun chucks
√ Diameter 10 – 25 mm
√ Length 27 – 550 mm

REQUEST A QUOTE
Dimensions (in mm) Item Number Ceramic Ferrule
D1 L1 D5 h3 D3* h* L1 Burn Off* Low Carbon Steel
13 45-165 25 8 17* 3 3 800-13-XXX UF13
16 45-225 32 8 21* 4.5 4 800-16-XXX UF16
19 45-255 32 10 23 6 4 800-19-XXX UF19 | FT19
22 85-255 35 10 23* 6* 4 800-22-XXX UF22
25 85-255 41 12 31* 7 6 800-25-XXX UF25
Not listed densities and sizes are available upon request.
